Mobile Aluminium Work Platform (Dual Mast)
The Mobile Aluminium Work Platform Dual Mast is a reliable and stable lifting solution designed for safe and efficient work at height. Constructed from high-strength aluminium alloy, it provides excellent durability and enhanced stability during operation. The dual mast design offers better balance and higher lifting capability, making it ideal for maintenance, installation, cleaning, and warehouse applications. It features smooth vertical lifting, easy mobility, and essential safety systems for secure operation, with a compact design for indoor areas and confined working spaces.
Specifications
| Model No. | ASGTWY 9-100 |
|---|---|
| Lifting Height | 9,000 mm |
| Working Height | 10,700 mm |
| Lifting Capacity | 200 kg |
| Ground Clearance | 80 mm |
| Platform Size | 1,320 × 600 mm |
| Outspread Size | 2,190 × 2,090 mm |
| Electrical Source | 220 V / 50 Hz AC |
| Lifting Motor | 0.75 kW (220 V AC) |
| Overall Size (L × W × H) | 1,500 × 900 × 1,980 mm |
| Overall Weight | 540 kg |
Features
- High-strength aluminium alloy construction
- Dual mast design for enhanced stability and balance
- Smooth vertical lifting mechanism
- Integrated safety systems for secure operation
- Compact footprint ideal for indoor use
- Easy mobility with smooth-rolling castors
- AC-powered motor for continuous indoor operation
- Outrigger stabilisers for safe elevated work
Related Products

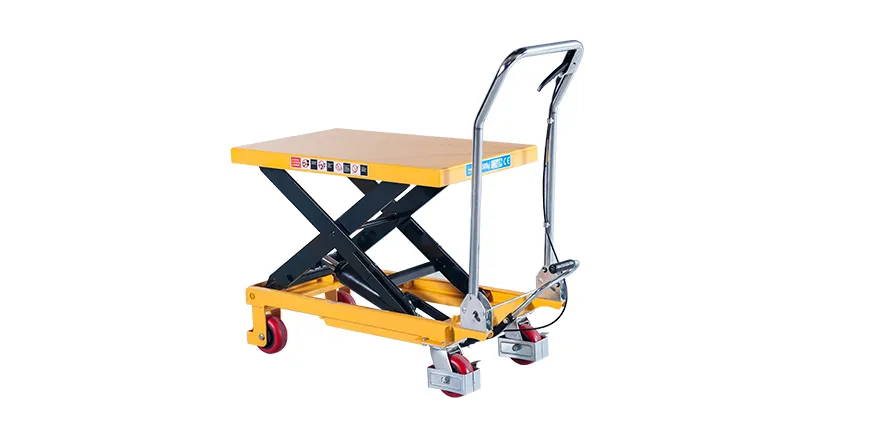

Lift Table
Our Hydraulic Lift Table is a reliable and efficient material handling solution designed to safely lift, position, and transport heavy loads in warehouses, factories, workshops, and assembly lines. The device features a heavy-duty scissor mechanism with a high-quality hydraulic system that enhances productivity while minimizing manual labor and reducing workplace injury risks.
- Load Capacity: 500 kg to 1000 kg
- Lifting Height: Up to 1500 mm
- Minimum Height: 190 mm – 250 mm
- Lifting Mechanism: Heavy-duty hydraulic scissor mechanism
Scissor Lift (Full Electric)
Our Scissor Lifts are designed to provide safe, stable, and efficient vertical lifting for a wide range of industrial, commercial, and maintenance applications. These units feature a heavy-duty scissor mechanism with excellent load stability and smooth performance, suitable for warehouses, factories, construction sites, shopping malls, and maintenance operations.
- Lifting Capacity: 300 kg – 1000 kg (model-dependent)
- Maximum Working Height: 4 m – 16 m
- Platform Size: 1.2 m × 0.8 m (customizable)
- Power Source: Battery
Aluminum Aerial Lift (Single Mast)
Our Aluminum Aerial Lift is designed for safe and efficient vertical access in industrial, commercial, and maintenance applications. It combines lightweight portability with robust strength for easy movement across diverse work settings. The lift is suitable for warehouses, factories, retail spaces, and construction sites, emphasizing safety, stability, and worker productivity at height.
- Load Capacity: 150 – 500 kg
- Platform Height: 2 – 16 m (model dependent)
- Maximum Working Height: 4 – 18 m
- Lifting Type: Hydraulic / Electric
